Sentry 520M

 The Sentry 520M
Built for Family. Ready for Adventure.

Length

17'

Max People

10

Max HP

100

Ready for Anything.

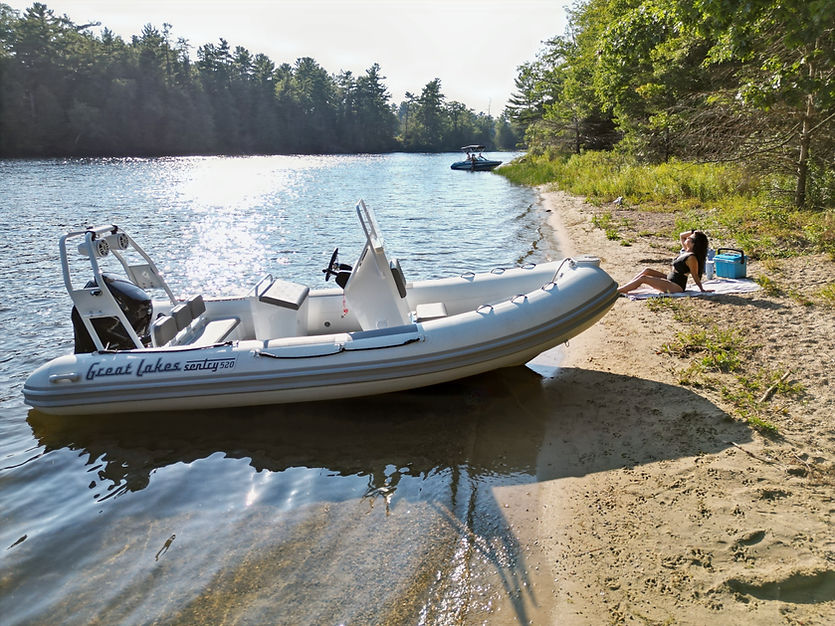

The Great Lakes ST520M is a 17-foot aluminum-hull inflatable designed for everything from relaxed family cruising to tubing, swimming, fishing and full days exploring the lake.

With its wide 7'6" beam, spacious layout and capacity for up to 10 people, there’s plenty of room to bring the kids, friends, coolers and gear along for the day. The ST520M combines the stability and confidence of a large inflatable with the durability of a 4mm powder-coated aluminum hull.  A 20-degree deadrise helps provide a comfortable ride, while the large inflatable tubes make the boat exceptionally stable when passengers are moving around, swimming or climbing aboard. And when the kids want some excitement, the factory tow arch makes it ready for tubing and other family watersports. Whether you're heading across the lake for lunch, pulling the kids on a tube, finding a quiet beach for a swim or spending the afternoon fishing, the ST520M gives your family the freedom to do a little bit of everything.

 One Boat. Your Whole Summer.
Family Days • Watersports • Fishing & Exploring

Cruising • Beaches • Swimming
Tubing • Skiing • Tow Arch
Stable platform • Plenty of deck space • 100 HP capability
 Colour Options

Break Water White

Calming Grey

Jet Grey

Great Lakes Blue

Specifications and Features
Length Overall
17'
Internal Length
12'5"

Depending On Configuration

Width Overall
7'6"
Internal Width
48"
Deadrise
20°
Number of Air Chambers
5
Tube Diameter
22"
Maximum People
10
Maximum Load
2,348 lbs
Boat Only Weight
872 lbs
Fuel Tank Capacity
100 L
Maximum HP
100
Transom Length
L
Standard Features
Mehler PVC or Achilles Hypalon Tube
Navigation Lights

Tow Post or Arch
Suzuki Tachometer and Fuel Gauge​
Bilge Pump Manual/Automatic
12 Volt Power Port/USB Port

Battery ON/OFF Switch
Fuel/Water Separator

High-Tensile Chromated and Powder-Coated Aluminum Hull
​​Keel Guard​
Flush-Mount Non-Return Valves
Bow Cushion
Bow Step
Integrated 100 L Fuel Tank
​
Hand Pump, Repair Kit, Safety Paddle, Fire Extinguisher
Lifting Points and Tow D-rings
Integrated Transom Support
Optional Features
Stereo
Courtesy Lights
Suzuki SMG4 Gauge GPS/Chart Plotter
Hydraulic Steering with Tilt
Model Comparison
ST520M
ST650M
Length Overall
21'
17'
Internal Length
15'5"
12'5"
Width Overall
8'6"
7'6"
Internal Width
57"
48"
Deadrise
20°
20°
Number of Air Chambers
6
5
Tube Diameter
24"
22"
Maximum People
12
10
Maximum Load
3,196 lbs
2,348 lbs
Boat Only Weight
1,025 lbs
872 lbs
Fuel Tank Capacity
150 L
100 L
Maximum HP
175
100
Transom Length
XL
L
 The Sentry 520M - The Family RIB
